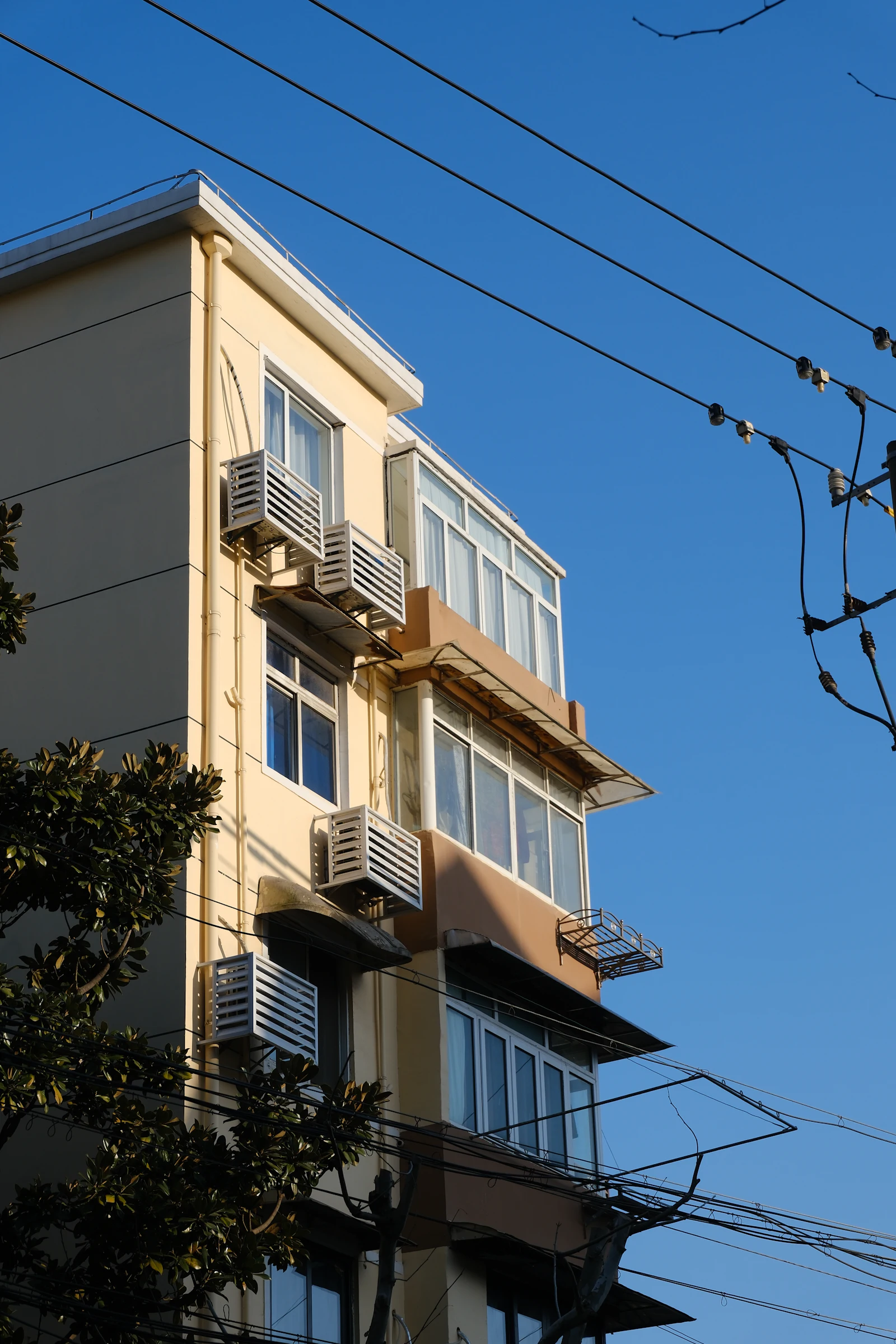

Tall building facade with rows of windows and air conditioning units
Fig. 01 Outdoor condenser units staged together. Component names are indexed below — no ratings or model specifications are stated anywhere on this page.

/00 Service data board

Cooling and heating service, filed like a technical board.

Sierra AC Services works on central air conditioning, furnaces, heat pumps, ductwork and thermostats for homes and small businesses in Sierra Madre, California. This page is the same reference sheet we work from: what each system does, what usually goes wrong, and what actually gets checked.

  • ScopeCooling · Heating · Heat pumps · Air distribution · Controls
  • Hours7am to 6pm, Mon to Sun
  • Based90 N Baldwin Ave, Sierra Madre, CA 91024

Component index

  • ACondenser fan
  • BCoil fins
  • CService panel
  • DLine set
  • EDisconnect

01

System Overview

How a residential split system divides the work between an outdoor unit, an indoor unit and the duct path that carries the air.

A split system moves heat in two places. The outdoor unit holds the compressor, condenser coil and fan, and rejects heat to outdoor air. The indoor unit is either an air handler with an evaporator coil or a furnace with a heat exchanger; it holds the blower that pushes air through the ducts. Refrigerant travels between the two through a matched pair of copper lines called the line set.

Airflow closes the loop. Return air is pulled back to the unit, passes through the filter and across the coil, then leaves through supply ducts and registers. Most comfort complaints come down to one of four things: not enough airflow, a refrigerant problem, an electrical or control fault, or water where it should not be. Finding which one is the job.

ComponentLocationWhat it does
CondenserOutdoorRejects heat from the refrigerant to outdoor air
Evaporator coilIndoorAbsorbs heat and moisture from the return air
Air handlerIndoorHouses the blower motor that moves air through the ducts
FurnaceIndoorBurner and heat exchanger add heat to the supply air
Line setWall or atticInsulated copper lines carrying refrigerant between units
ThermostatLiving spaceCalls for heating or cooling over low-voltage wiring
Condensate drainIndoorCarries water off the coil to a drain or outdoors
  • Range68–72°F is a commonly used indoor comfort band
  • SEER2Cooling efficiency rating published for a specific model
  • AFUEHeating efficiency rating for furnace equipment
  • HSPFSeasonal heating performance rating for heat pumps

02

AC Services

Cooling work from the thermostat down to the line set: diagnosis, refrigerant, drainage and the starting components.

AC.01

Cooling diagnostics

Supply and return air temperatures are measured at the registers, static pressure is checked across the filter and coil, and the condenser coil is inspected. Superheat and subcooling readings help decide whether the refrigerant charge is the cause or the symptom.

AC.02

Refrigerant circuit

Current equipment commonly runs R-410A or R-454B. Recovering, evacuating and charging requires the correct refrigerant and a vacuum pulled on the line set. A leak search comes before any top-off, because a system that loses charge once will lose it again.

AC.03

Condensate management

The evaporator coil pulls moisture out of the air, so the condensate pan, drain line and float switch all have to stay clear. A plugged drain, a slime-filled pan or a frozen coil are the usual reasons water shows up at a ceiling stain or a utility closet floor.

AC.04

Starting components

A run capacitor, a contactor and the compressor make up the start circuit. Capacitors drift out of tolerance, contactor points pit and weld, and a weak capacitor is a common reason an outdoor unit hums but never turns the compressor.

NoteSEER2 is a published cooling efficiency rating for a specific model, so a higher number means more cooling delivered per watt of electricity. The rating belongs to the equipment nameplate, not to a promise about how any particular house will run.

03

Heating Services

Gas and electric furnace work: ignition sequence, airflow limits, venting and heat exchanger condition.

A gas furnace ignites fuel at the burner and pushes air across a heat exchanger; an electric furnace uses resistance elements and the same blower. Both depend on airflow being high enough to carry heat out of the cabinet, and on the flue staying open. When airflow drops, the temperature inside the cabinet rises and the limit switch shuts the burner down — which is exactly what it is there to do.

The safety chain is checked before anything else on a no-heat call: induced draft, pressure switch, hot surface ignitor, flame sensor, limit switch and rollout switches around the burner box.

  • Ignition sequence. The ignitor should glow and light the burner, then the flame sensor proves the flame. A cracked ignitor or a flame sensor coated in residue gives a no-heat call that repeats every cycle.
  • Airflow. A loaded filter, closed registers or a failing blower motor raise cabinet temperature and trip the limit switch on short cycles.
  • Venting. A blocked, disconnected or crushed flue pipe causes rollout and shutdown, and it is a safety item rather than an adjustment.
  • Heat exchanger. Cracks or corrosion are inspected directly, because combustion gases can be carried into the supply air if the metal fails.

NoteAFUE expresses how much of a furnace's fuel energy actually becomes delivered heat. It is a published figure for a specific model and says nothing about duct condition, airflow or how the equipment was installed.

04

Heat Pumps

One refrigerant loop, two jobs, and a reversing valve that decides which direction the heat moves.

A heat pump does not make heat, it moves it. On a heating call the reversing valve sends hot refrigerant gas to the outdoor coil so the unit gives heat to outside air, while the indoor coil absorbs heat from the house. Reverse the valve and the same components run the cooling cycle. One blower, one thermostat and one set of ducts serve both.

Because the outdoor coil runs cold in heating mode, moisture freezes on it and a defrost cycle periodically reverses the system to clear the ice. Ductless mini-splits use the same cycle for rooms that have no ductwork, with an indoor head mounted on the wall and a short line set running to the outdoor unit.

HP.01

Reversing valve

A solenoid shifts the valve on a mode change. When it will not shift, the system cools fine and refuses to heat, or heats only with the backup element doing the work.

HP.02

Defrost control

Board, timer or sensor driven. Ice left on the outdoor coil blocks airflow through the fins and cuts heat exchange, so a defrost fault shows up as slow, steady comfort loss.

HP.03

Backup heat

An electric supplemental element helps during defrost and in cold weather. The emergency heat setting on the thermostat forces that element, so it is a test position rather than an everyday mode.

NoteHSPF is the published seasonal heating rating for a heat pump model. Like SEER2, it describes the equipment on a rating condition, not the output of an installed system on a particular day.

05

Ductwork

The delivery path decides whether the equipment can move enough air to do what it was sized to do.

Return air comes back to the unit through large ducts, gets filtered, crosses the coil, and returns to the rooms through supply ducts and registers. Every supply outlet should deliver air and every return path should stay open enough to let the blower pull. When one is missing, the whole system makes up for it noisily.

Flex duct is common for branch runs because it routes easily in tight construction, and it is easy to crush, kink or pinch during later work in an attic or crawl space. A collapsed branch shows up as one warm room, a whistling register, or a system that moves plenty of air at the cabinet and nothing at the grille.

TermWhat it means in service
Static pressureResistance the blower works against; high readings point at a restricted air path
CFMCubic feet per minute, the measure of airflow delivered to the space
Flex ductInsulated flexible branch duct, vulnerable to crushing and over-tight strapping
RegistersSupply and return grilles, including the damper position behind them
Manual JLoad calculation used to size equipment and the airflow it needs
TABTesting, adjusting and balancing airflow measured outlet by outlet

06

Controls

Thermostats, low-voltage wiring and the safety switches that stop an unsafe state before it becomes damage.

A thermostat is a user interface, not the deciding device. It reports demand over a low-voltage bus, and the control board in the furnace or air handler decides whether the compressor, blower, burner or reversing valve responds. That is why swapping a thermostat can change nothing, and why a blank screen often traces back to a transformer fuse rather than the thermostat itself.

Interlocks are the quiet reason equipment stays safe. A float switch stops the blower when the condensate pan fills, pressure switches open when refrigerant pressure leaves a safe range, and a low-voltage transformer feeds the control circuit that runs the whole call.

  • Confirm the mode, schedule and setpoint before assuming a control failure. A thermostat left in heat by mistake is a normal afternoon call.
  • Check the low-voltage fuse or the transformer feeding the control circuit, because equipment power can look normal while the control side is dead.
  • Trace the call at the control board terminals to see whether the demand is arriving and simply not being acted on.
  • Verify the safety chain: float switch, pressure switches and door switch, all of which read as a dead system from the wall.

NoteA setpoint inside roughly 68–72°F in both seasons keeps the equipment cycling normally instead of overworking against an extreme request.

07

Maintenance

A seasonal routine that keeps airflow, drainage and heat exchange working the way the equipment was set up.

IntervalTaskReason
MonthlyReplace or clean the air filterKeeps static pressure and coil airflow where the blower expects them
MonthlyRun the system and listenNew rattles, hissing or short cycles show up early this way
SeasonalClean the condenser coil and clear its clearanceRestores heat rejection at the outdoor unit
SeasonalFlush the condensate drain and check the panPrevents a backed-up float switch or water at the ceiling
AnnualInspect venting, heat exchanger, wiring and controlsSafety components depend on these staying sound
AnnualMeasure temperature split, static pressure and chargeConfirms the installed system still matches its design

Before any service visit

Turn the system off at the electrical disconnect beside the outdoor unit and set the thermostat to off. Drainage work needs power off as well, and refrigerant work is done with recovery equipment by qualified technicians.

RequestTo book a maintenance visit, call +1(626)621-9977 or email [email protected] with the equipment location and system type.

08

Troubleshooting Guide

Symptom, likely area, what gets checked. General field reference — it narrows the search, it does not replace diagnosis on site.

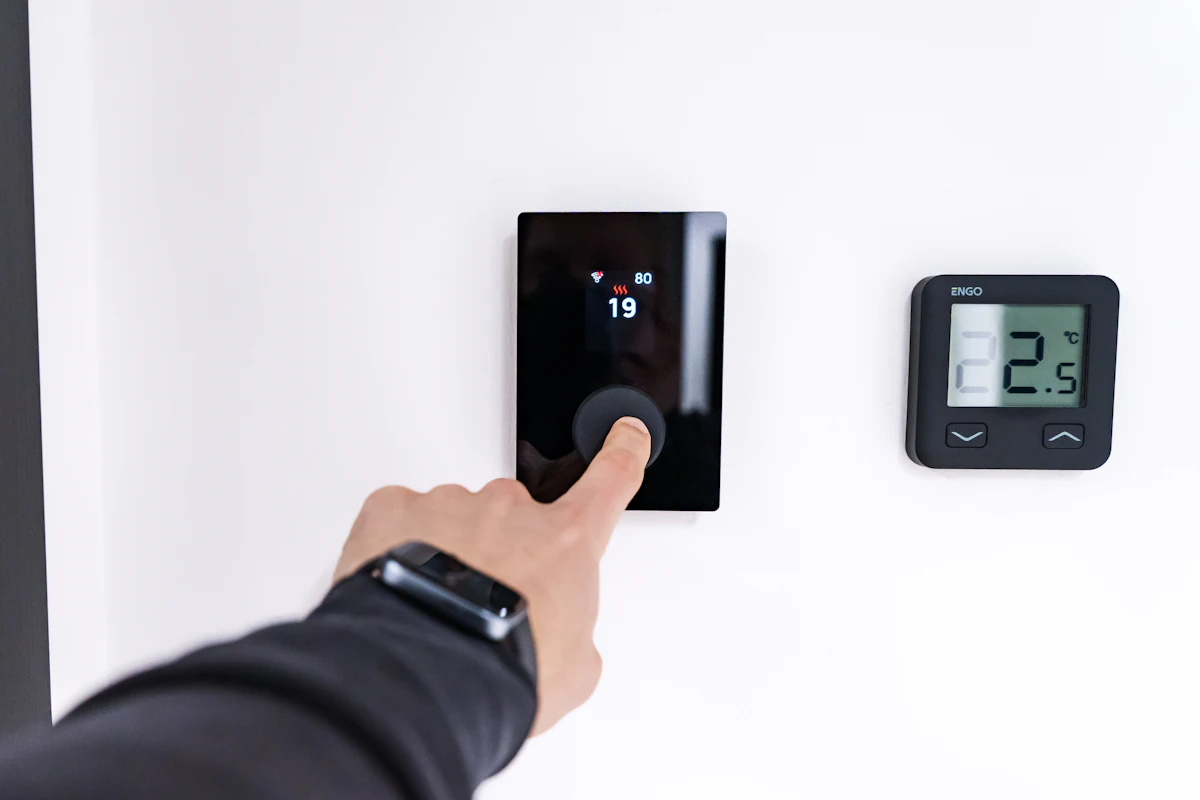

Hand adjusting a modern digital thermostat display during a system check
Fig. 02Diagnosis is a measurement exercise: confirm the symptom, isolate the area, then test before replacing anything.

Work through the list before scheduling if you can do it safely. Filters, register positions, a tripped breaker, a thermostat left in the wrong mode and a plugged condensate drain resolve a large share of calls without any parts.

  • Replace the filter and open every supply register, including returns.
  • Confirm the thermostat mode, schedule and setpoint, then reset it once.
  • Look at the outdoor unit for ice, debris against the coil, or a tripped disconnect.
  • Check the condensate drain and pan for standing water before the floor gets wet.

Showing all 9 troubleshooting entries.

Unit runs but the air coming out is not cold

Likely area

  • Airflow across the evaporator coil
  • Condenser coil blocked or restricted
  • Refrigerant charge low from a leak
  • Start circuit: capacitor or contactor

What is checked

  • Temperature difference between return and supply air
  • Filter loading, register positions and static pressure
  • Condition and clearance of the outdoor coil
  • Charge readings by superheat and subcooling before anything is added

Water staining a ceiling or pooling at the unit

Likely area

  • Clogged condensate drain line or dirty pan
  • Evaporator coil frozen, then melting
  • Cracked or poorly sloped drain pan
  • Float switch not stopping the unit in time

What is checked

  • The full drain run to its exit point, then the trap and cleanout
  • Whether ice was present on the coil, and why airflow dropped
  • Pan condition, slope and the fitting where it drains
  • Float switch operation before the pan overflows again

Airflow is weak in some rooms only

Likely area

  • Closed, blocked or painted-over registers
  • Crushed, kinked or disconnected flex duct branch
  • Damper position left off after work in the attic
  • Return air path restricted by a closed door or covered grille

What is checked

  • Airflow at each outlet compared room by room
  • The branch run traced back from the weak grille
  • Filter condition and blower speed setting at the unit
  • Static pressure across the filter and coil

Breaker trips when the outdoor unit starts

Likely area

  • Failed or bulging run capacitor
  • Contactor with pitted or welded contacts
  • Moisture inside the electrical section of the cabinet
  • Compressor drawing high amp load

What is checked

  • What else was running on that circuit at the moment it opened
  • Capacitor and contactor tested with power disconnected
  • Pan, drain and line set for water reaching the control section
  • Compressor amp draw measured against the nameplate rating

Furnace runs but there is no heat, or it locks out

Likely area

  • Hot surface ignitor cracked or worn out
  • Flame sensor not proving the flame
  • Limit switch tripping from high cabinet temperature
  • Flue blocked or pressure switch not closing

What is checked

  • The full ignition sequence observed through a complete call
  • Filter, blower and register positions affecting airflow
  • Flue connection, slope and obstruction from end to end
  • Heat exchanger condition before the unit is restarted

Heat pump runs but the house does not warm up

Likely area

  • Defrost cycle not running, leaving ice on the outdoor coil
  • Reversing valve not shifting on the heating call
  • Thermostat left on emergency heat
  • Backup element or outdoor fan not operating

What is checked

  • Ice build-up on the outdoor coil and the defrost control status
  • Whether the reversing valve shifts and the board reports the mode
  • Thermostat mode, including why emergency heat was selected
  • Outdoor fan operation and airflow through the coil

System short cycles on and off constantly

Likely area

  • Low charge cycling the system on a pressure switch
  • Dirty evaporator coil icing, then melting
  • Cabinet temperature tripping the limit switch
  • Thermostat mounted where it reads the wrong temperature

What is checked

  • Run and off periods timed, and whether sections stop together
  • Coil inspected for frost after the cycle ends
  • Filter, blower speed and static pressure at the unit
  • Thermostat location, schedule and setpoint against a handheld thermometer

Thermostat screen blank or no response at the wall

Likely area

  • Low-voltage fuse or transformer feeding the control circuit
  • Loose or shorted thermostat wire at the wall plate
  • Float switch opened because the pan is full
  • Batteries or power terminal not supplying the thermostat

What is checked

  • Power at the thermostat, then the fuse and transformer at the unit
  • Wire continuity and terminal torque at the wall plate
  • Condensate pan and float switch position before resetting anything
  • Door switch and disconnect position in the equipment cabinet

Ice on the suction line or the evaporator coil

Likely area

  • Airflow low from a loaded filter or slow blower
  • Refrigerant charge affected by a leak
  • Metering device or coil restricted
  • Return air blocked, keeping the coil too cold

What is checked

  • Filter, registers and blower operation before touching the charge
  • Static pressure across the filter and coil
  • Coil condition and evidence of a past freeze
  • Charge readings once airflow is confirmed correct

ScopeEverything above is general field information. Diagnosis depends on measurement, access and the specific equipment installed, and refrigerant work requires qualified technicians with recovery equipment.
